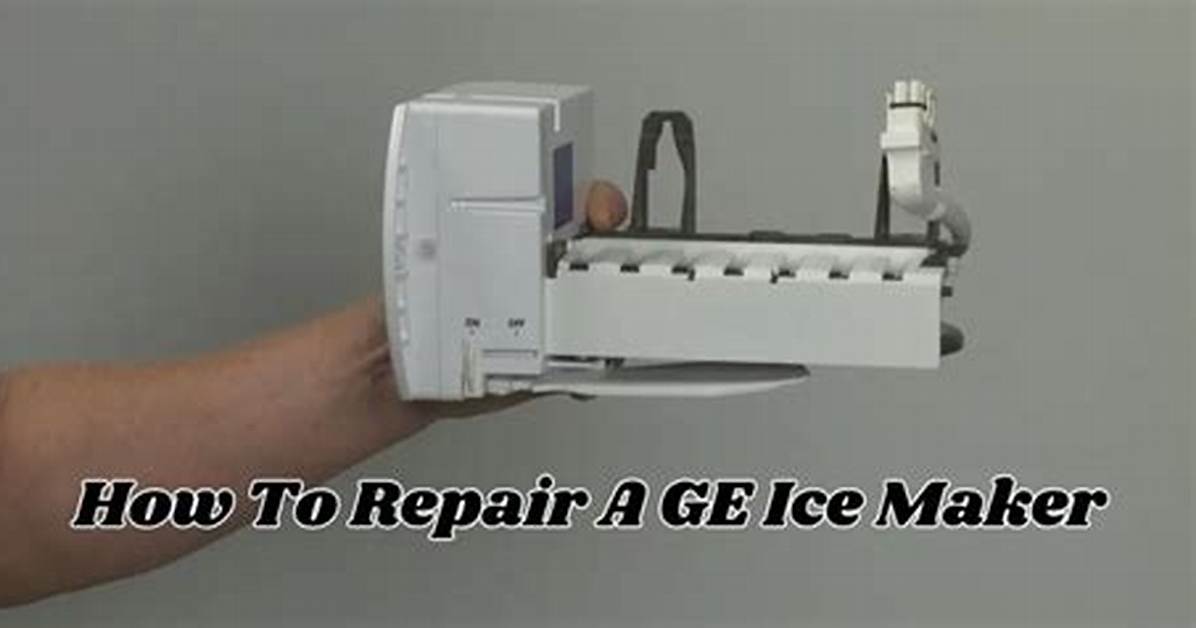

The Complete Ge Fridge Ice Maker Repair Guide: Step-by-Step Troubleshooting
By Elena Rostova
When the assembly produces ice but cannot discharge it into a glass, isolate the mechanical dispensing line from the ice maker's internal mold assembly. The auger motor repair protocol applies specifically to delivery mechanics: the long metal helix inside the ice bucket and its dedicated drive motor behind the back wall.
| Failure Mechanism | Key Symptoms | Required Component | Parts Cost Range |
|---|---|---|---|
| Hydraulic Blockage | Buzzing valve coil, dry mold, ice plug inside fill neck | Water Inlet Valve / Line Flush | $35, $65 |
| Thermal Sensor Fault | Tray full of frozen ice, blades never cycle to eject | Ice Mold Thermostat | $22, $45 |
| Optical Signal Drop | Empty bin registers full, diagnostic displays continuous beam block | Infrared Transceiver Boards | $48, $80 |
| Dispenser Motor Stall | Full bin, hums on lever press, metal drive shaft immobile | Auger Drive Motor Assembly | $75, $130 |
| Complete Core Failure | Stripped internal gears, flaking Teflon coating, cracked casing | Full Ice Maker Assembly | $95, $160 |
Inspect the ice mold thermostat clip underneath the aluminum tray. The ejection fingers will not turn until this internal thermostat reads roughly 15°F (-9°C). If freezer temperatures fluctuate between 18°F and 24°F due to a dusty condenser coil or bad door gasket, the thermostat will never close its circuit. The mechanical fingers stay stationary, locking the cycle indefinitely.
